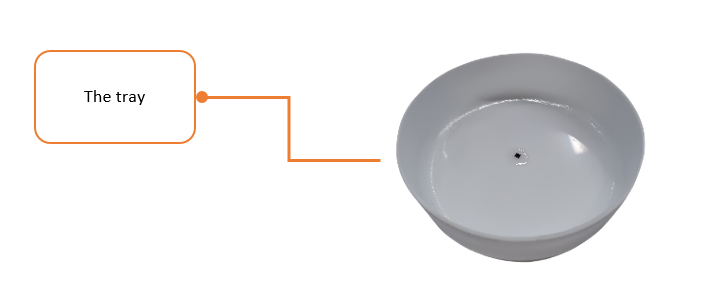

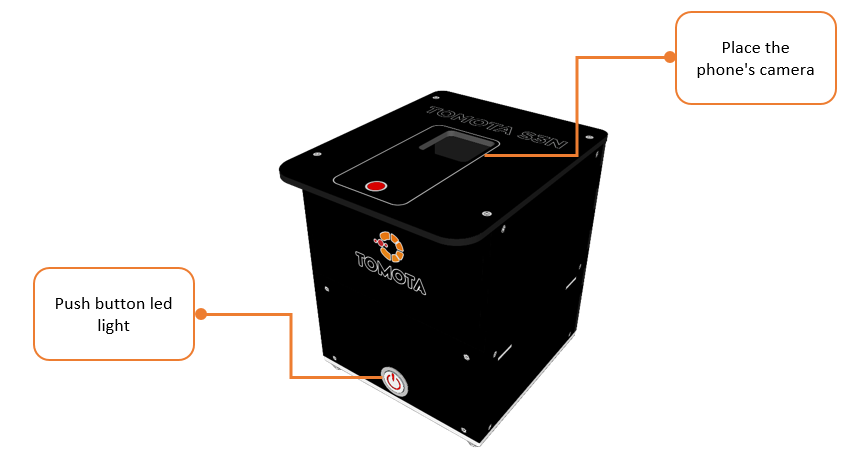

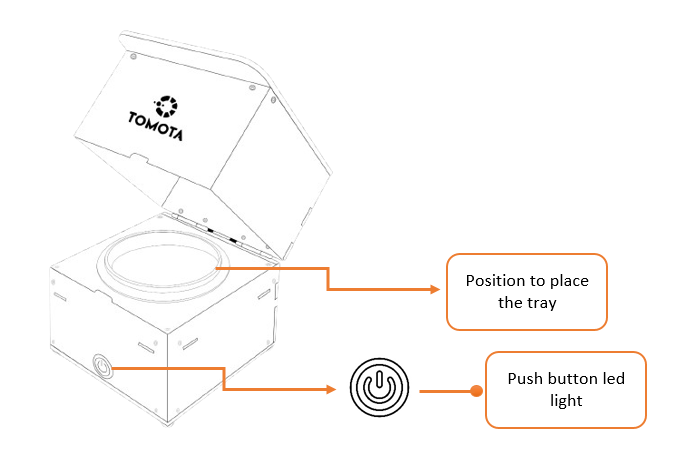

¶ COMPONENTS OF TOMOTA S3N

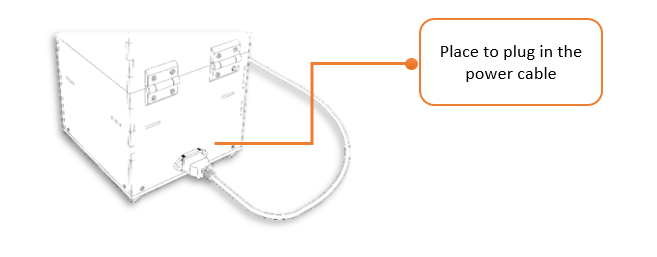

¶ TOMOTA S3N MACHINE ELECTRIC VERSION
Note: Power plug type F is included in TOMOTA S3N. The machine can be powered either by a 220 VAC mains supply or by a rechargeable battery.
¶ TOMOTA S3N MACHINE BATTERY VERSION

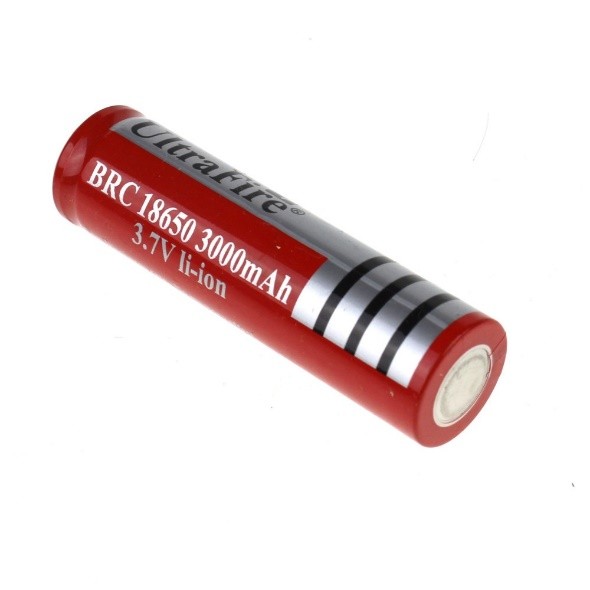

- The battery compartment of the TOMOTA S3N device requires three batteries. Battery specification: BRC 18650 - 3.7V Li-ion.
 |
 |

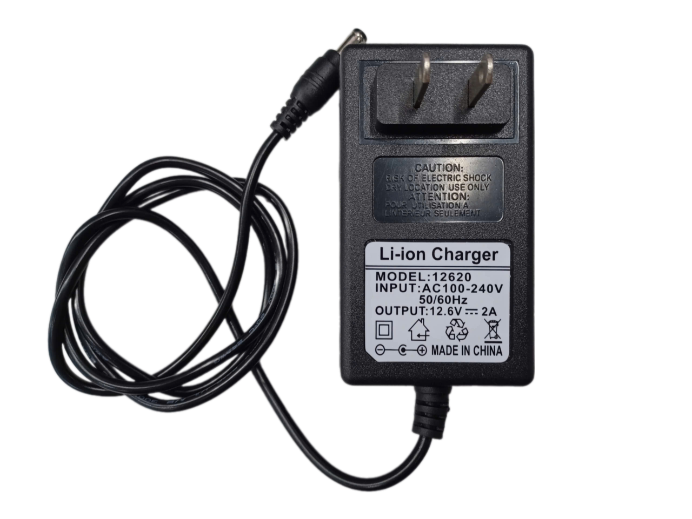

- TOMOTA S3N comes with a charger and batteries. The charger is compatible with power sources ranging from 100V to 240V.
- The battery should be replaced only when the light dims, the battery deforms, or it becomes hot. For optimal performance, replace the battery every 6 months.
* STEPS TO REPLACE THE BATTERY:

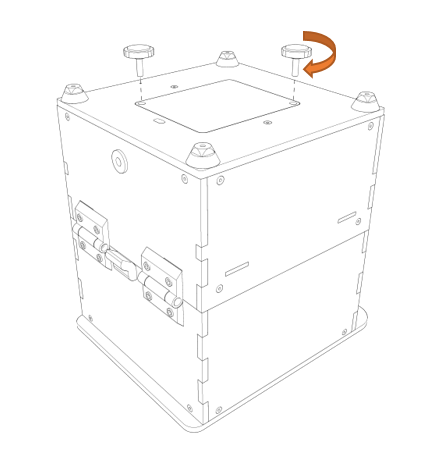

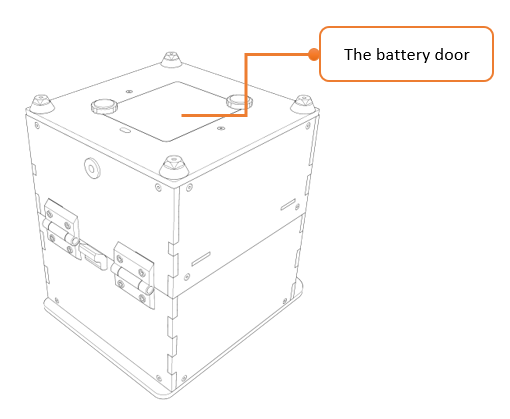

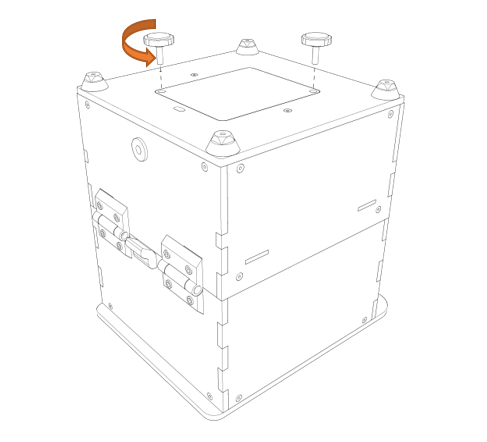

1. To loosen 2 screws, turn them to the left. Remove the battery door from the bottom of the machine.
 |
 |

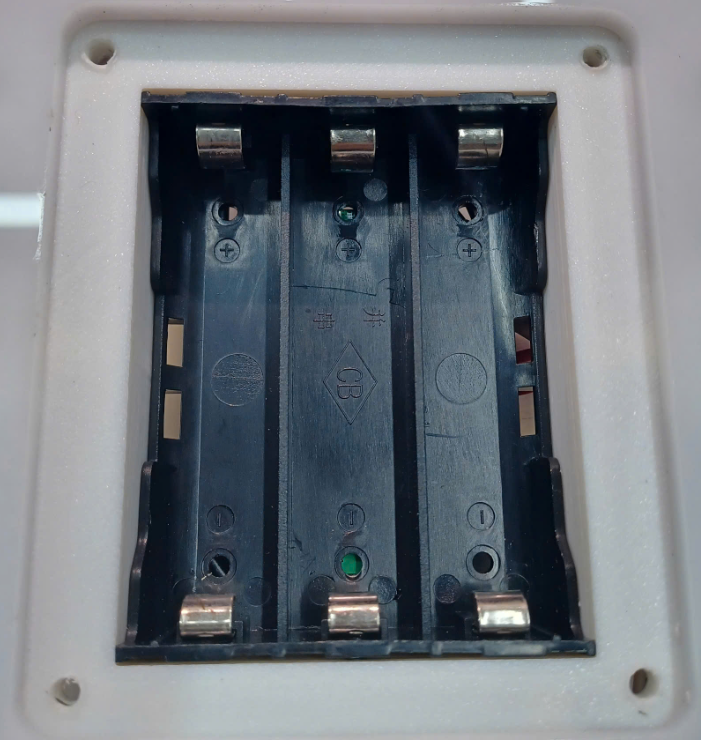

2. Insert three BRC 18650 - 3.7V Li-ion batteries, ensuring the correct alignment of the + and – marks. An illustration showing the batteries in place is provided.
3. Turn and tighten the screws to the right, securing the battery cover back in place.
