¶ 1. LIST OF MATERIALS

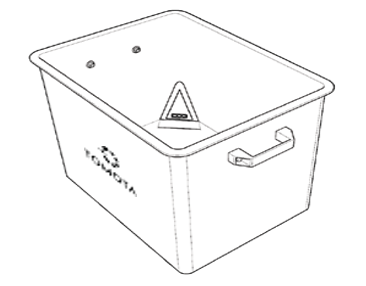

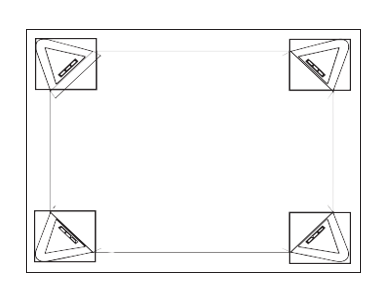

| 1 | TOMOTA S3 box |
1 |
 |
|

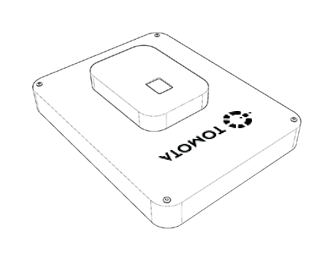

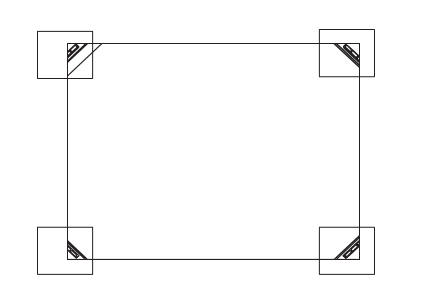

| 2 | The Lid |
1 |
 |
|
| 3 | Lift Coupling 1cm |
4 |
 |
The lid already has it installed. |
| 4 | Lift Coupling 5cm |
4 |
 |
Use a lifting equipment coupling 5cm to ensure that the camera on your phone captures 4 markers on the TOMOTA S3 box, which includes the following types of phones:
|
| 5 | Measuring Cup 500 mL |
1 |
 |
¶ 2. PROCEDURES FOR CHECKING AND REPLACING LIFT COUPLING
NOTE: The lift coupling is available in two height variants—1 cm and 5 cm—designed to accommodate cameras mounted on different types of devices.
STEP 1: Checking The Camera Alignment
- Situation 1: No Adjustment Needed
If your phone's camera captures 4 markers on the TOMOTA S3, it doesn't require a 5cm coupling adjustment.
- Situation 2: Adjustment Needed
The lift coupling 5cm needs to be changed if your camera fails to capture 4 markers from TOMOTA S3.
STEP 2: Replace the Lift Coupling
NOTE: Adjusting the coupling lift 5 cm can be done by hand.
- 1. Place the lid upside down on the table.
(1cm lifting screw already installed)
- 2. Choose the appropriate 04 high screws.

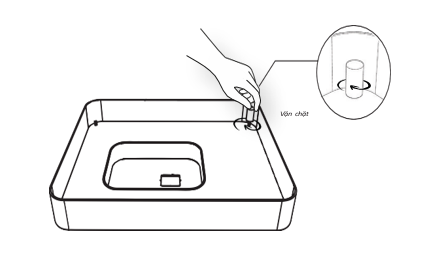

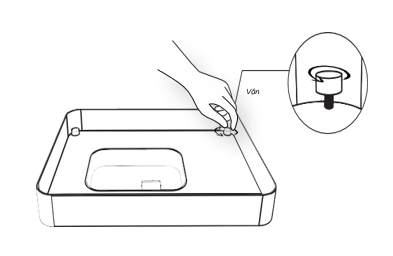

- 3. To loosen 4 lift couplings 1cm, turn it to the left.

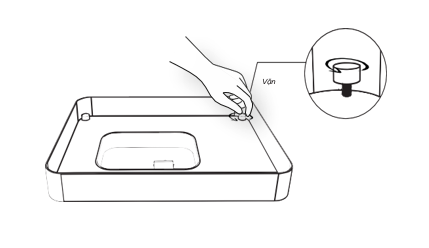

- 4. Turn and tighten the coupling lift 5cm to the right.

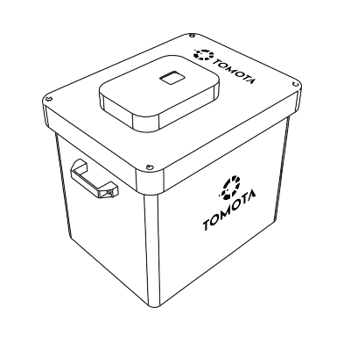

- 5. Place the lid on the TOMOTA S3 box to ensure that it is balanced. In case the lid is rocked, the lifting couplings need to be reassembled.
