¶ INSTRUCTIONS TO MEASURE SHRIMP ADULT BY TOMOTA S3+
STEP 1: Prepare Materials to Measure
- 1 TOMOTA S3+ box;
- 1 small net;
- 1 measuring cup 500ml;
- Select the lid cover with a low-position or high-position that is suitable for the corresponding smartphone models. The Tomota S3+ high-position cover is recommended for the following smartphone models:
- Iphone: from The Iphone X models and earlier;
- Android: based on the camera's field of view.
- Shrimp (vannamei and monodon). It is recommended to use the shrimp size listed below with Tomota S3+.
|
Size |
Weight (Gram) |
Quantity (PCS) |
|
20-200 pcs/kg |
500 |
Size/2 |
|
200-400 pcs/kg |
500 |
70-100 con |
|
400 – 700 pcs/kg |
500 |
150 |
|
700 – 1000 pcs/kg |
500 |
200 |
|
10000 pcs/kg |
500 |
600 |

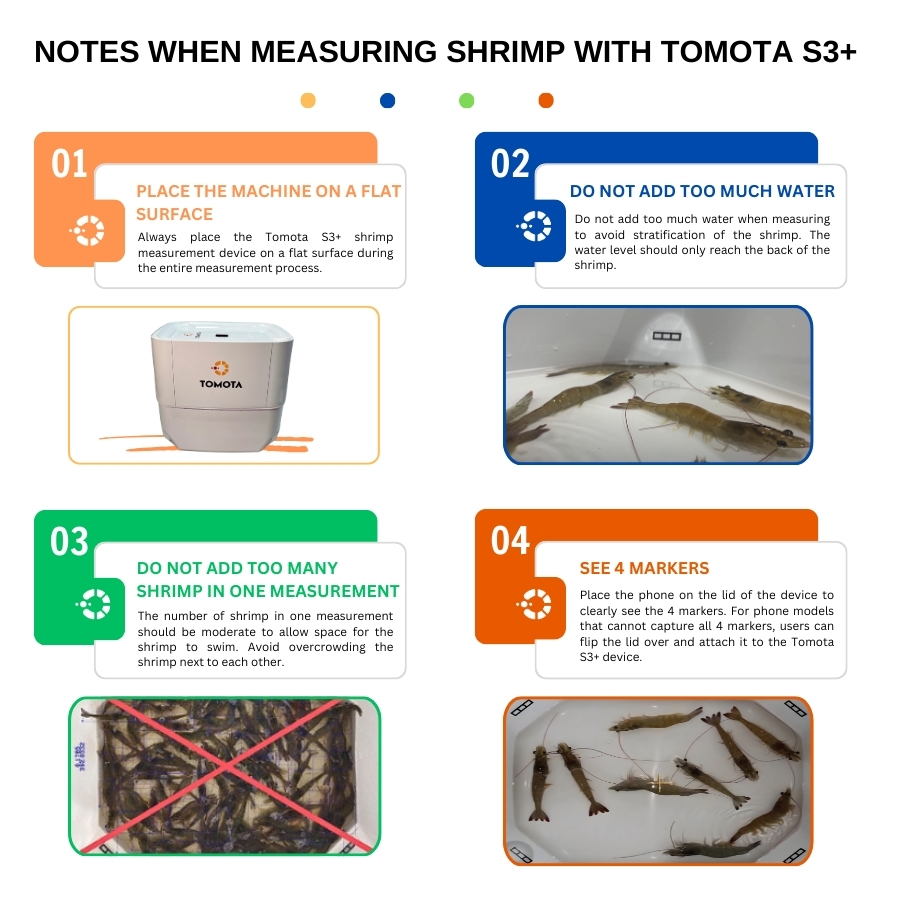

*REMARK DURING SHRIMP MEASUREMENT USING TOMOTA S3+
.jpg)
STEP 2: Prepare for Measuring

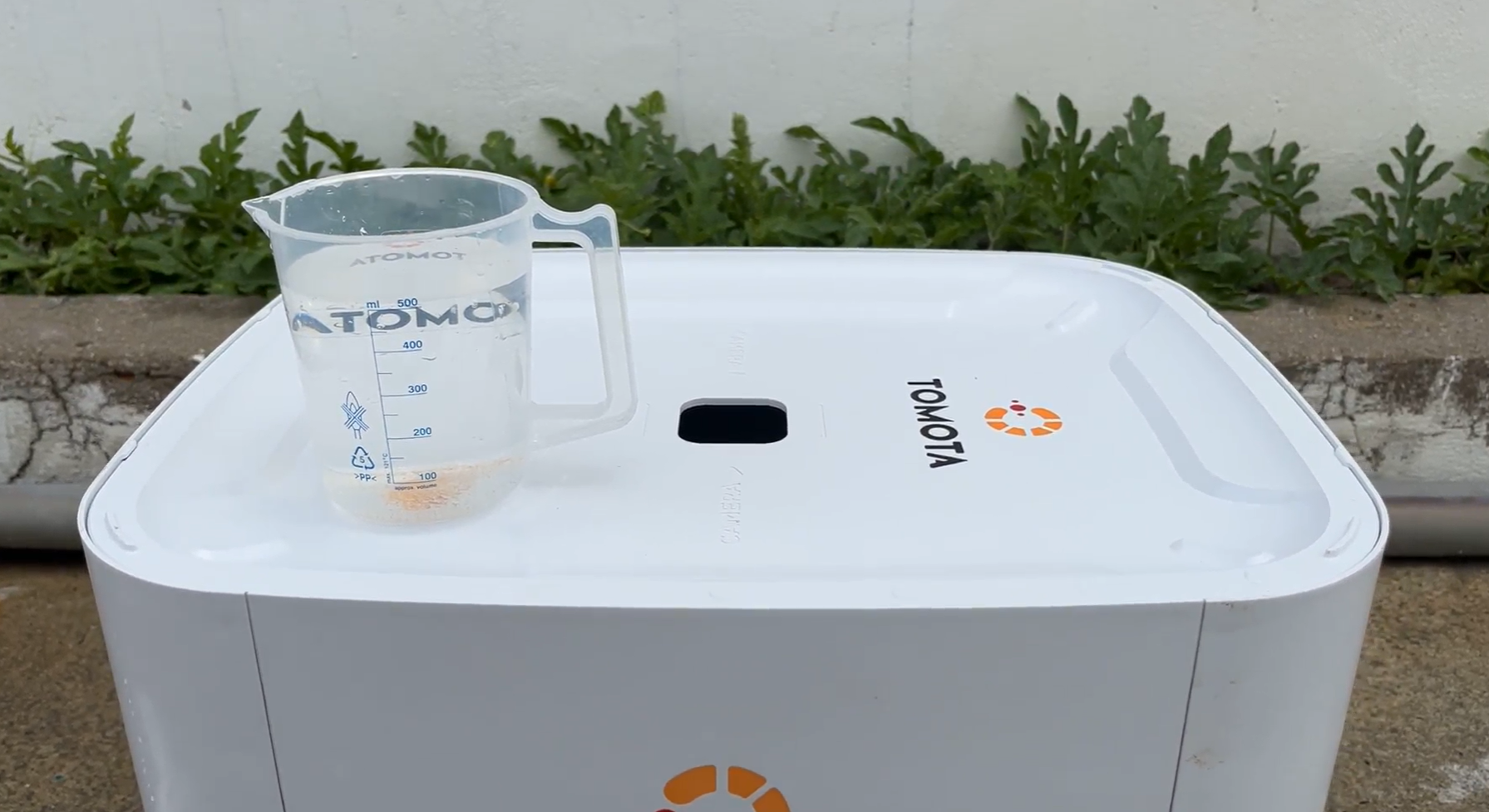

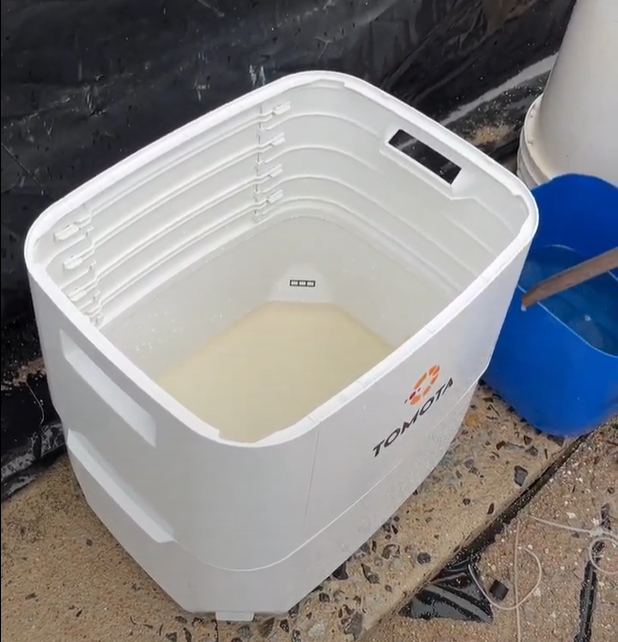

- Use the measuring cup to take about 500mL of pond water and pour it into the TOMOTA S3+.

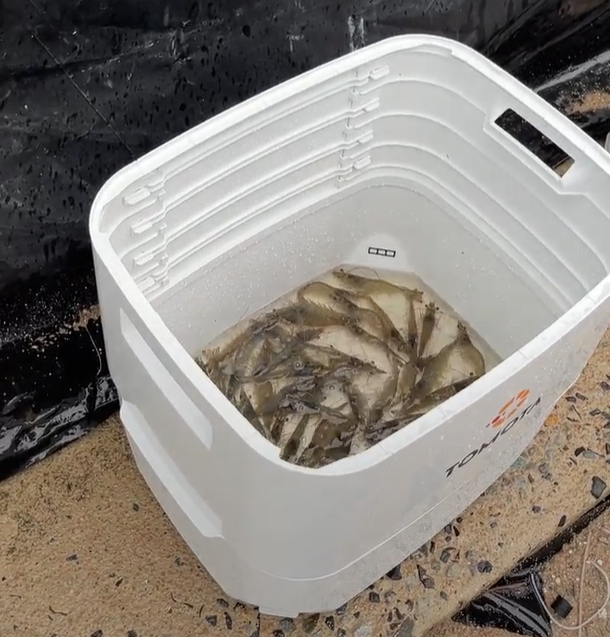

- Put the Shrimp into the TOMOTA S3+.
 |
 |
STEP 3: Position The Camera

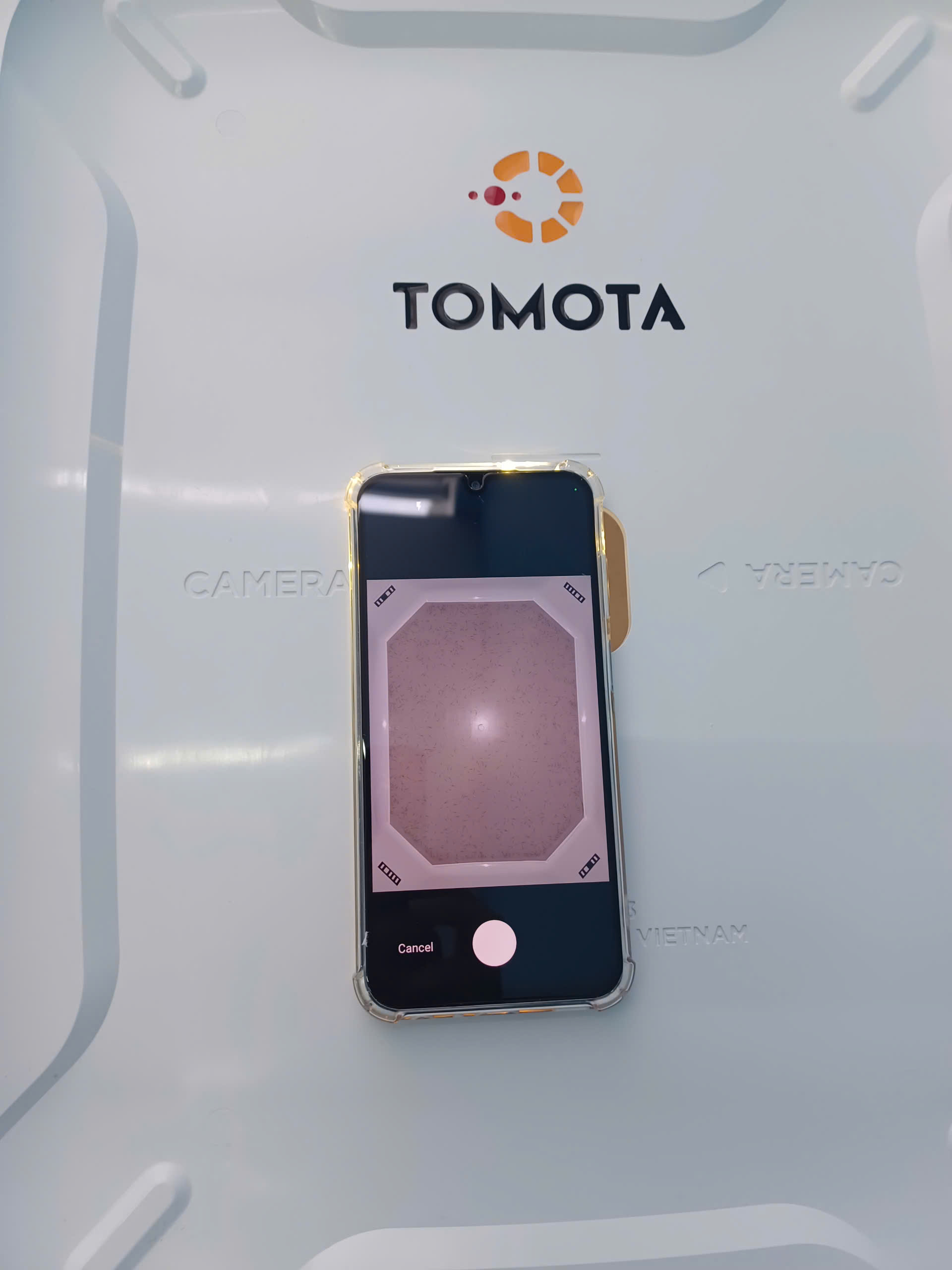

Open the TOMOTA app and use the camera feature within the app. Place your camera on the square on the lid. Then adjust the camera to view 4 markers at the corners of the screen.
STEP 4: Observe The Result

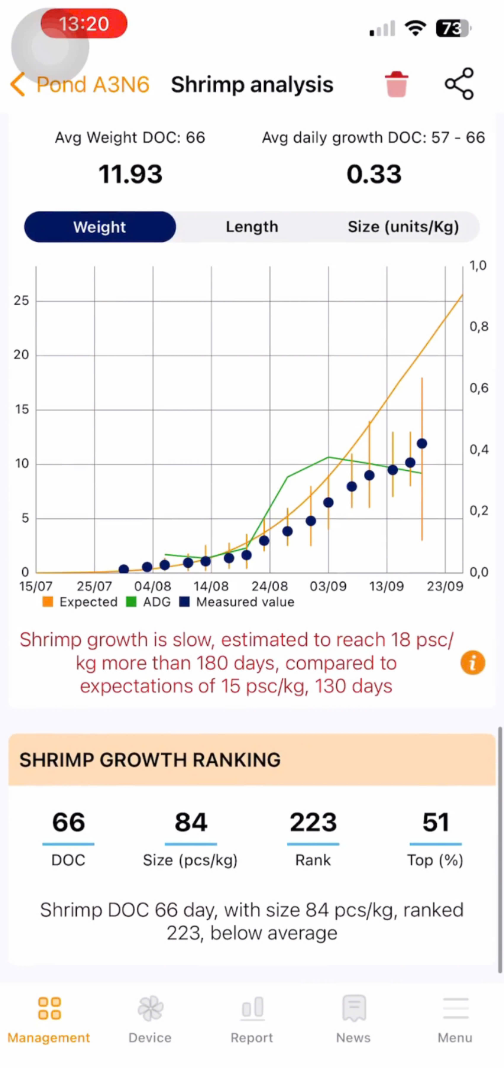

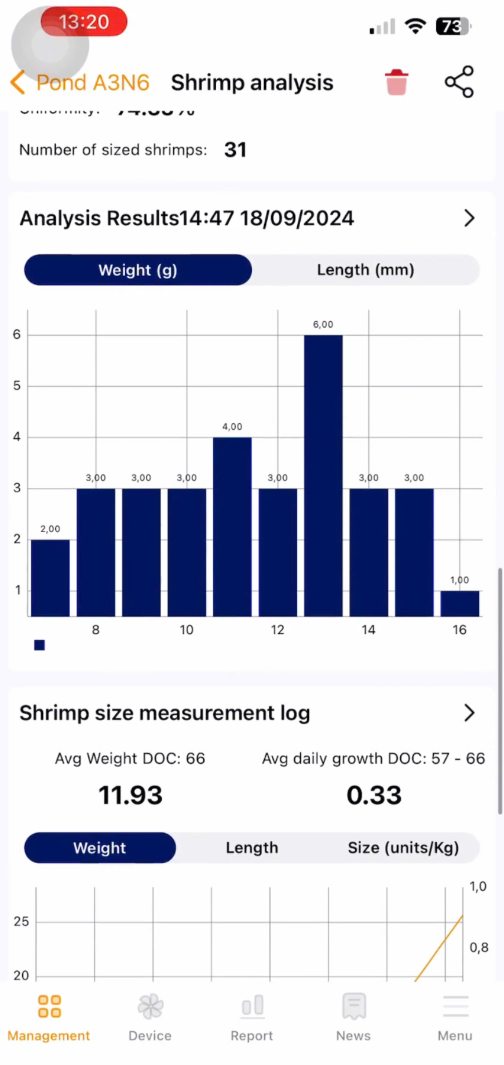

AI camera will automatically scan shrimp and list the size, and weight.
 |
 |
 |
STEP 5: Clean and Store
Clean the product after use and store it in a cool, dry place.
¶ INSTRUCTIONS TO COUNT SHRIMP POST-LARVAE BY TOMOTA S3+
STEP 1: Prepare Materials To Count
- 1 TOMOTA S3+ box;
- 1 small net;
- 1 measuring cup 500ml;
- Shrimp post-larvae above 6mm
- Select the low-position cover or the high-position cover that is suitable for the corresponding smartphone models. The TOMOTA S3+ high-position cover is recommended for the following smartphone models:
- iPhone: All iPhone models from the iPhone X onwards.
- Android: based on the camera's field of view.
STEP 2: Prepare for Counting Shrimp Post-Larvae +
- Use the measuring cup to take about 500mL of pond water and pour it into the TOMOTA S3+.

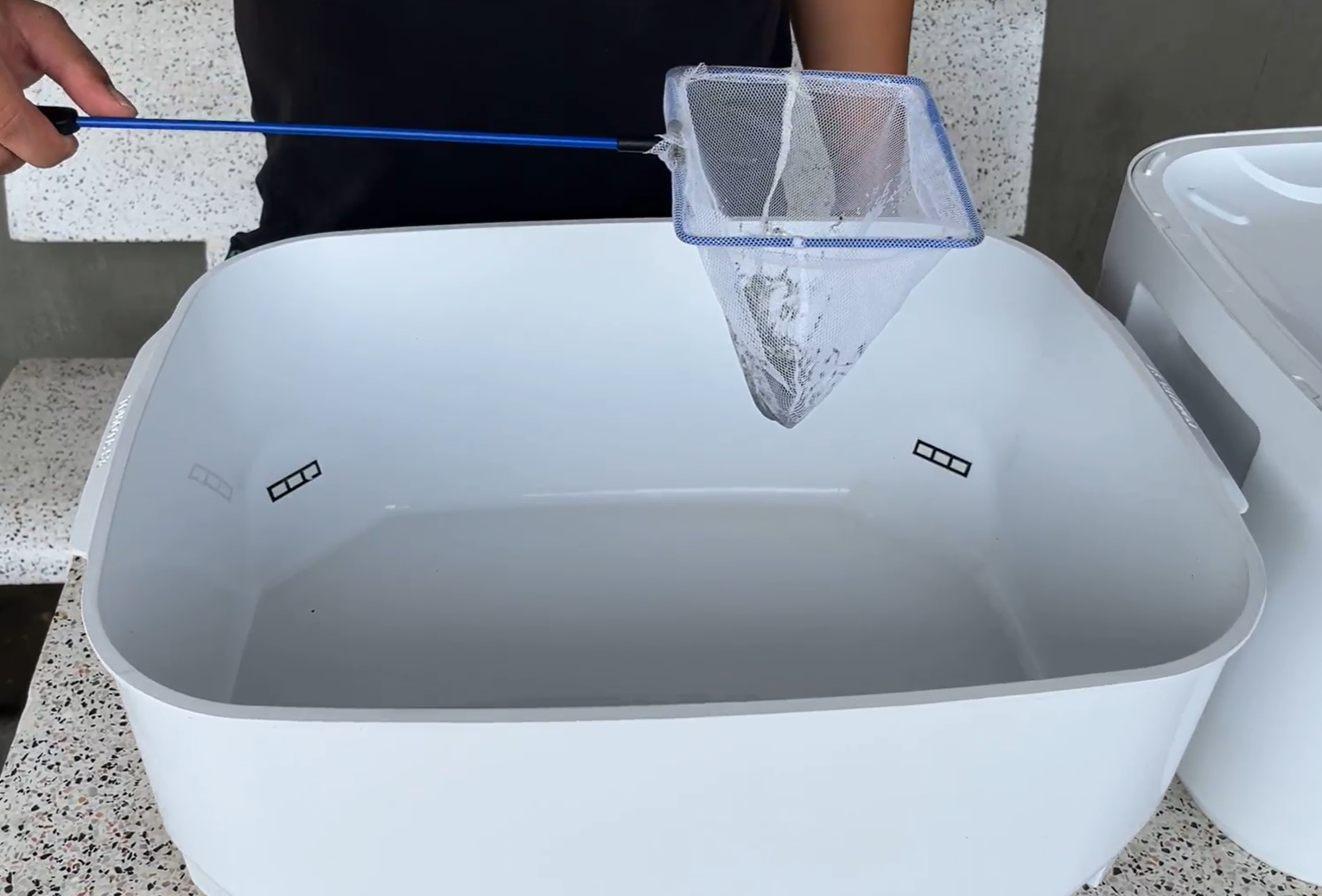

- Use the small net to get amount of shrimp post-larvae.

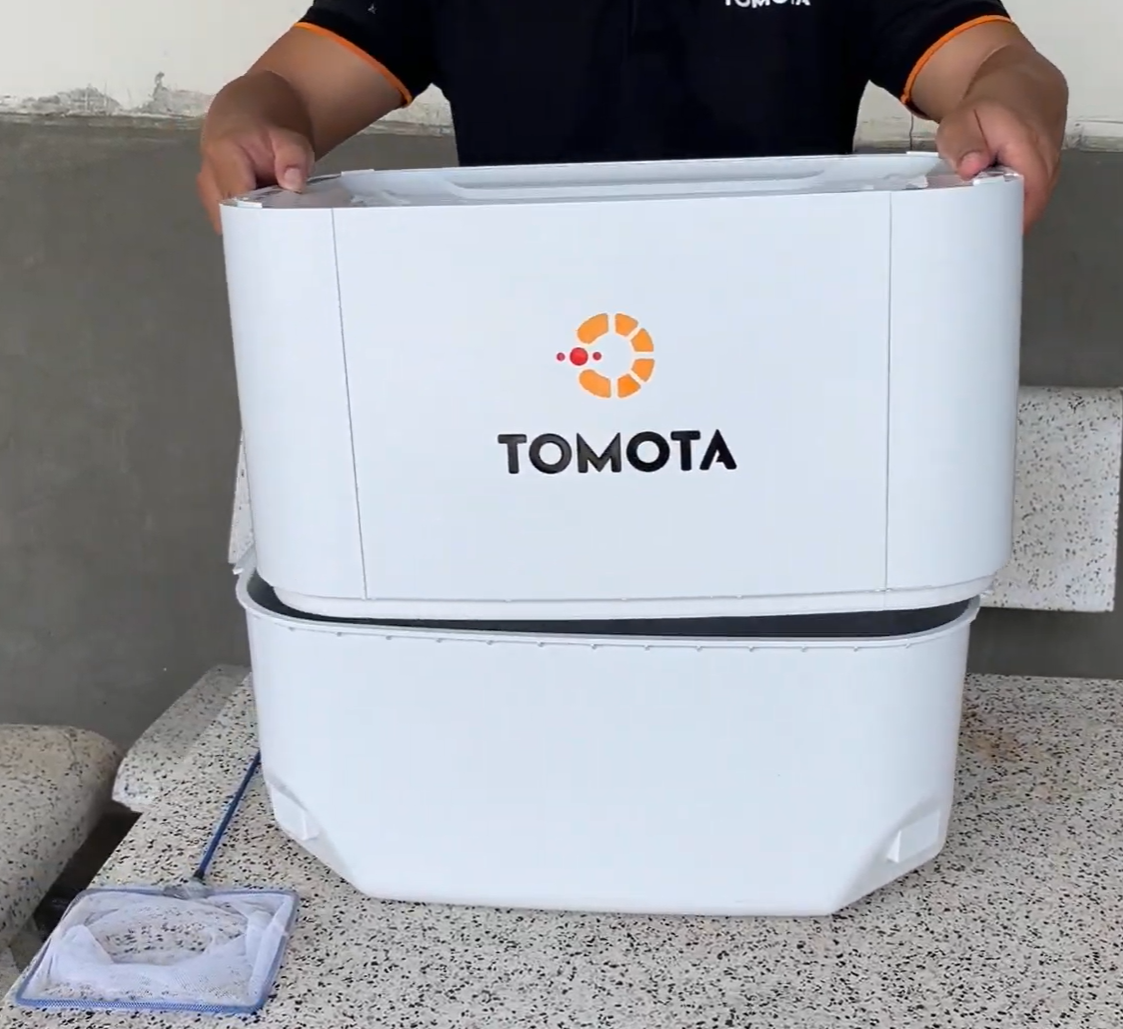

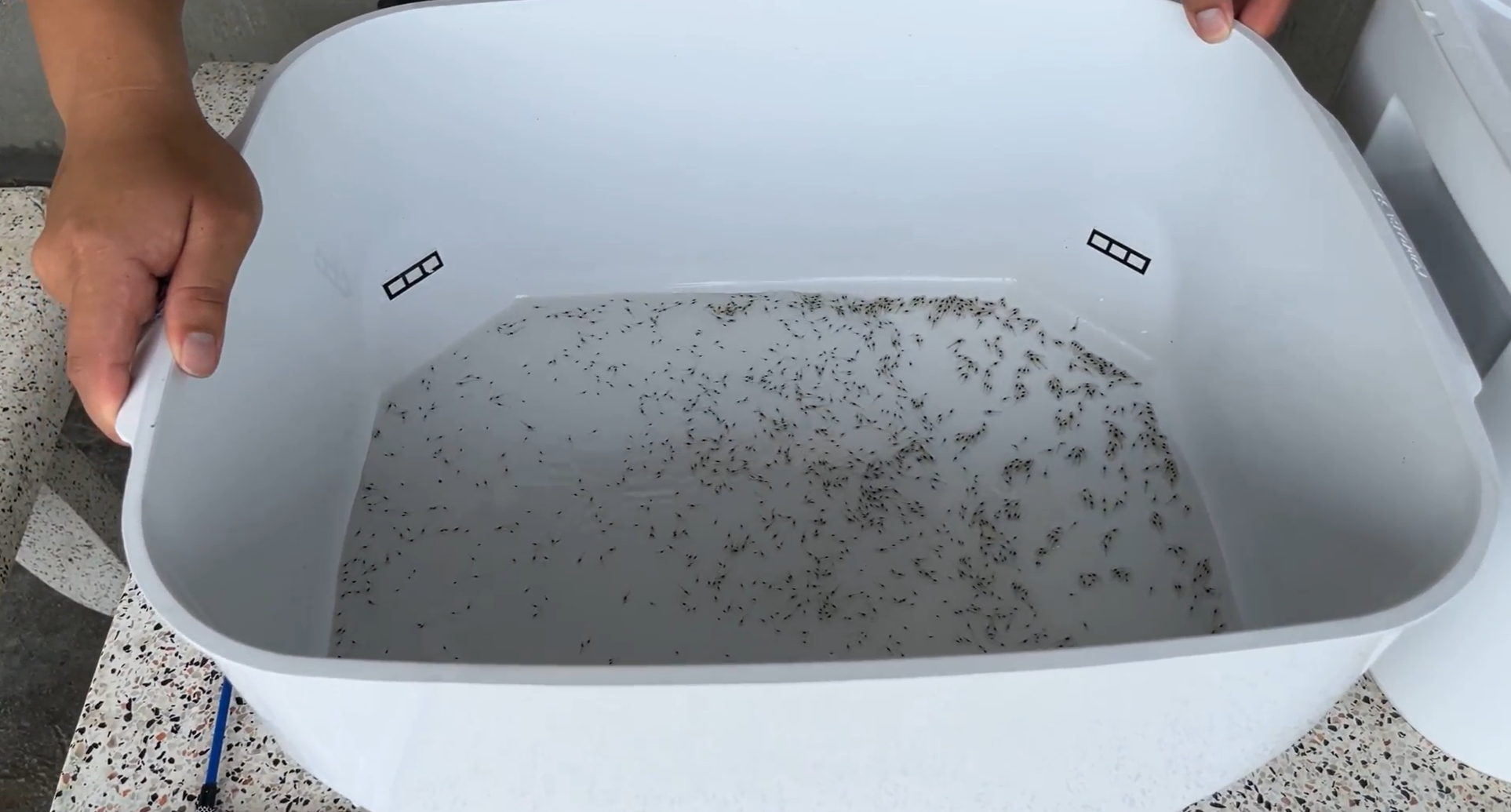

- Put these Shrimp PLs into the TOMOTA S3+ and shoftly shake it and close the lid.
STEP 3: Position The Camera

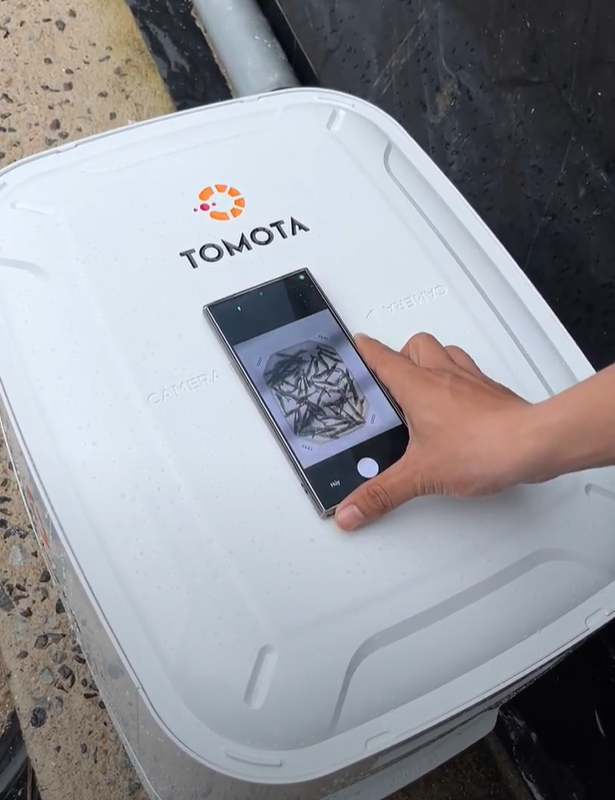

Open the TOMOTA app and use the camera feature within the app. Place your phone on the square on the lid. Then adjust the camera to view 4 markers at the corners of the screen.
STEP 4: Observe The Result

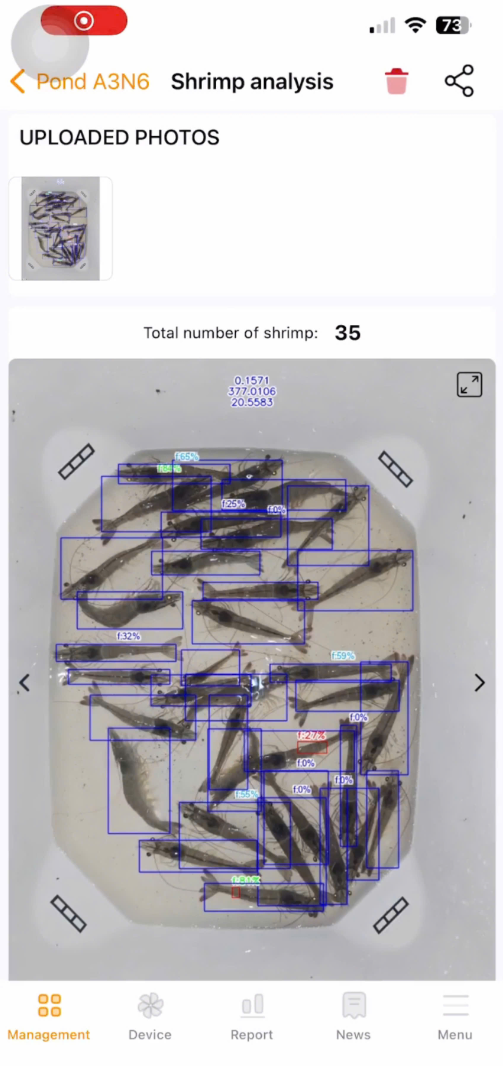

AI camera will automatically scan shrimp post-larvae and count.

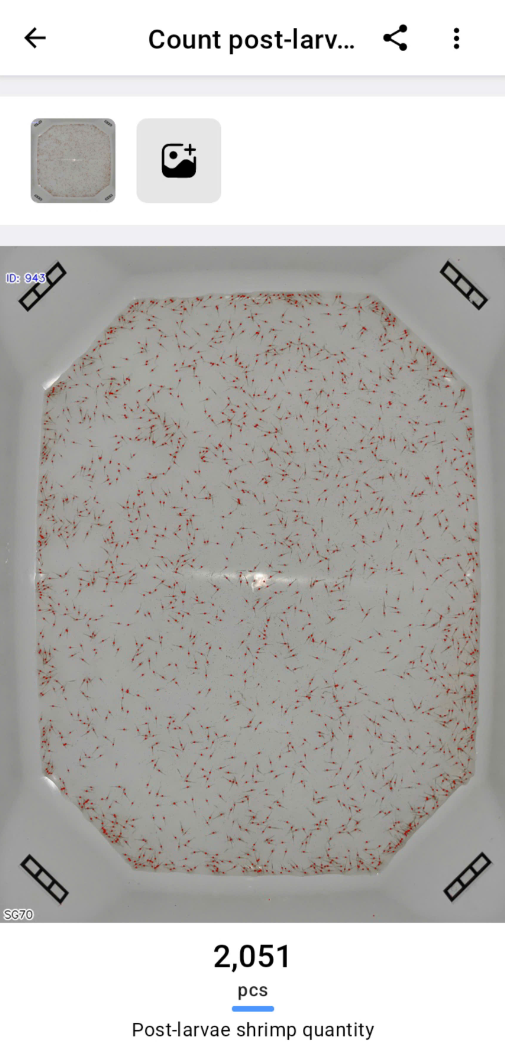

- The result of counting vannamei
STEP 5: Clean & Store
Clean the product after use and store it in a cool, dry place.
