¶ INTRODUCTION
TOMOTA S3+ produced by Otanics is a solution for monitoring shrimp growth (vanamei and monodon), determining gut (intestines) fullness of a shrimp, and counting shrimp post-larvae quickly and accurately (Vanamei, Monodon, Macrobrachium, Lobster) up to 4000 pieces in 6 seconds.
SHRIMP FARMING FEATURES AT A GLANCE
- Determine shrimp growth rate with more than 95% accuracy.
- Record swimming shrimp in 10s with TOMOTA, which does not affect shrimp health.
- Identify slow growth and size variation of shrimps in the pond.
- Get daily updates on shrimp prices from major processing factories in Vietnam.
- Make better decisions for improving profitability and sustainability.
- Optimize profits by monitoring daily shrimp growth.
- Provide important growth charts to help farmers adjust their farming methods.
HATCHERY FEATURES AT A GLANCE
- Count shrimp post-larvae (vannamei, monodon, macrobrachium, lobster).
- Count up to 4000 PLs in just 10 seconds, saving time and effort.
- Determine the stocking density accurately.
- Determine the length variation of pLs-Giant Tiger prawn in the pond.
¶ INITIAL INSPECTION
Remove the TOMOTA S3+ from its packaging and inspect it carefully to ensure that no damage has occurred during transit. If there is any damage, immediately notify your nearest distributor or customer service center.
TOMOTA S3+ Package is supplied with:

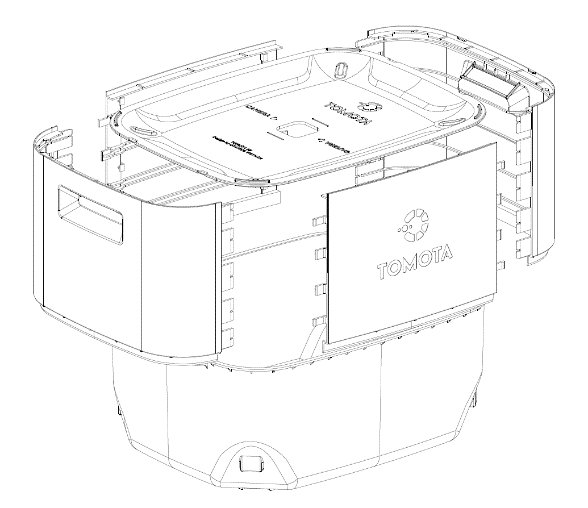

- TOMOTA S3+ box: 4 parts of body, bottom and lid of container ①;

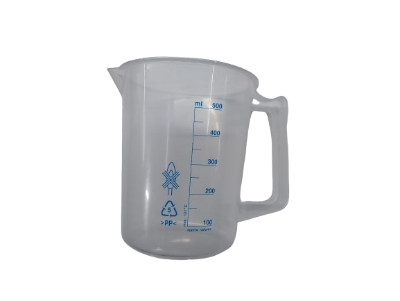

- Measuring Cup 500 mL ②;

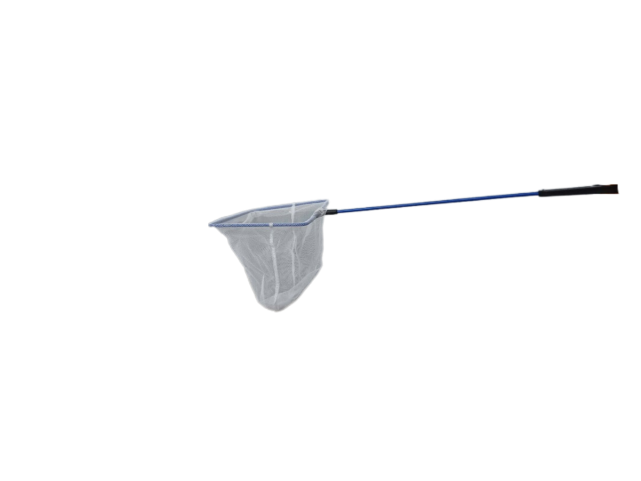

- Spoon-net ③;
- Marker: 4 backup pieces and 4 markers installed ④;
- Quick installation guide.
Note: please keep at least one set of accessories, if there is an error, the machine needs to be sent back with the accessories to check.
|
1 |
2 |
 |
 |
|
3 |
4 |
 |
 |
¶ TECHNICAL SPECIFICATIONS
|
Model |
Tomota S3+ |
| Origin | Vietnam |
|
Material |
ASA Plastic |
|
Weight |
4.2 kg |
|

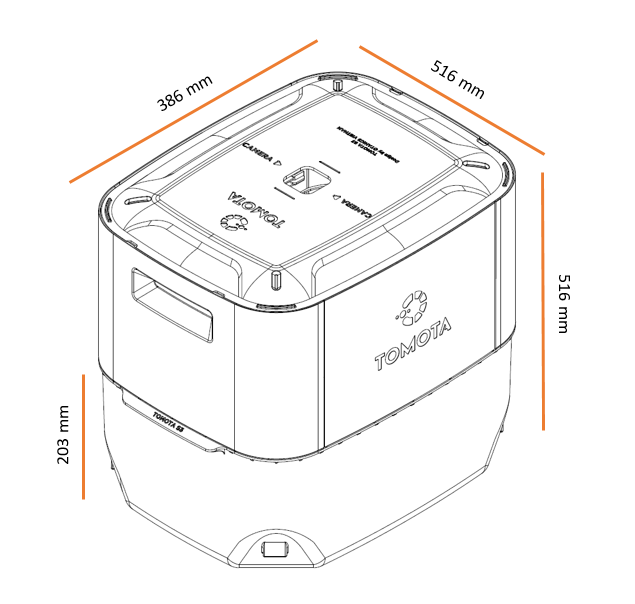

Dimension |
516 x 386 x 216 mm |
|
The product includes |
1 Tomota S3+ box 1 Measuring Cup 500 mL 1 Spoon-net |
|
Software |
TOMOTA (Android, iOS) |
|
Measured value storage |
App and Web TOMOTA https://farm.tomota.vn |
|
Export data |
Format csv Format pdf |
* To use the product correctly, please read this manual thoroughly before use. If you have any questions before using or installing the product, please contact our hotline:
- Phone: (+84) 889 866 682
- WhatsApp: (+84) 899 866 682
